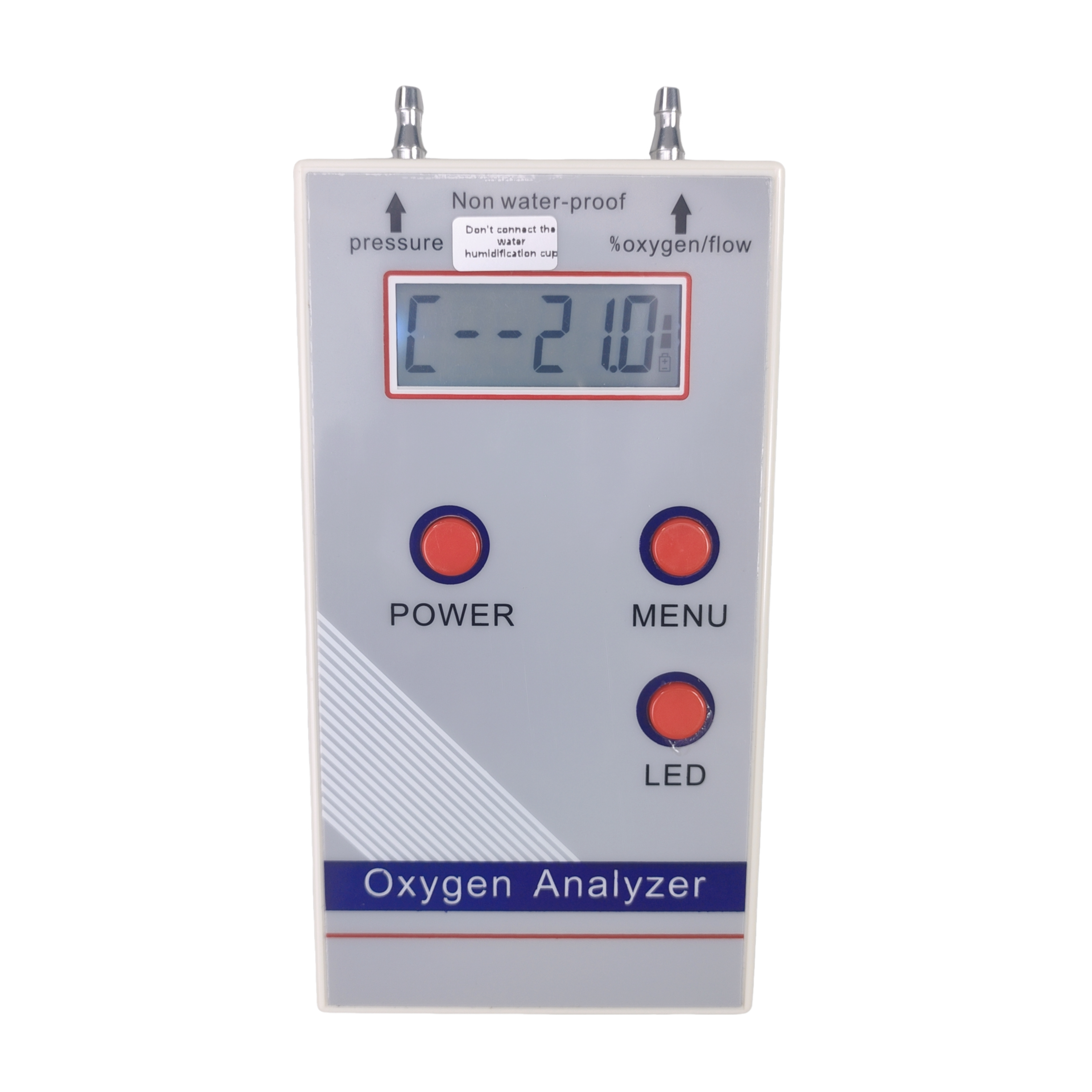

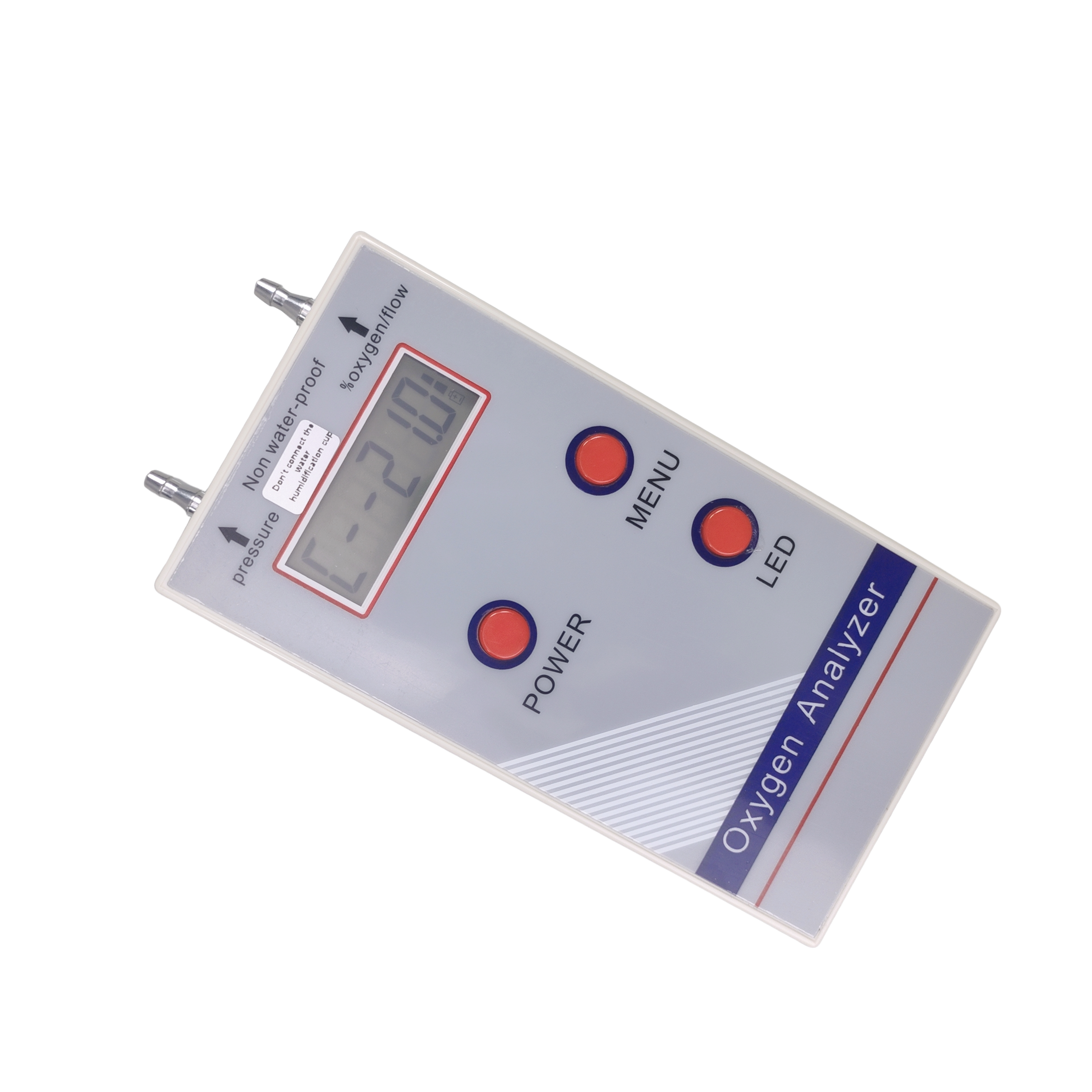

Handheld Ultrasonic Oxygen Analyzer RP-01

Measurement Capabilities (Flow)

• Range: 0 to 10.0 L/min
• Input: PSA oxygen concentrator output only
• Resolution: 0.1 L/min
• Accuracy: ± 5% F.S. (± 0.2 L/min.)

Measurement Capabilities (Concentration)

• Range: 21% to 95.6% O2
• Input: PSA oxygen concentrator output only
• Resolution: 0.001
• Accuracy: ± 1.5%

Measurement Capabilities (Pressure)

• Range: 0-100Kpa
• Resolution: 1Kpa
• Accuracy: ±1%FS

Operation

• Display Modes: F (Flow), C (Concentration), P (Pressure)
• Startup Time: ~8 seconds
• Auto-Off: ~3 minutes

Power & Battery

• Power Supply: 12V 1A
• Battery: 3150 mAh
• Charging Indicator Included

Physical Parameters

• Weight: 300 g
• Dimensions: 17.6 × 9.5 × 3.5 cm
• Operating Temperature: +5°C to +55°C

Safety Notes

• Do not calibrate with 100% oxygen
• Avoid oil contamination
• Keep device dry
