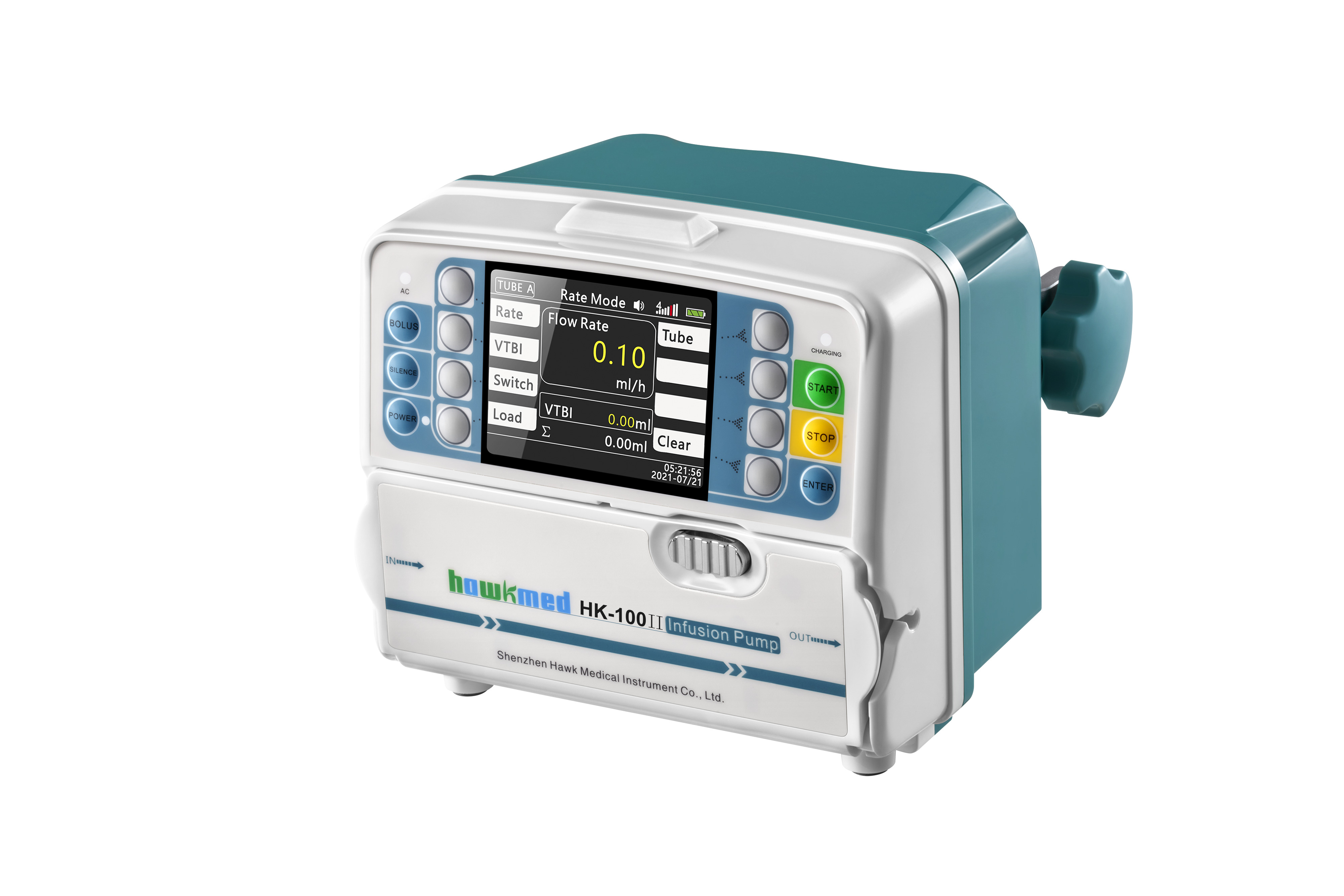

HK-100II Infusion Pump
Key Features
-
Anti Free Flow (AFF) safety mechanism
-
Color display with intuitive interface
-
Rotatable pole clamp for flexible installation
-
Detachable pump body for easy cleaning
-
Waterproof design with separate covers (IP24)
-
High sensitivity sensors for air bubble and occlusion detection
-
Long lasting battery (up to 5 hours)
-
Anti bolus and anti reverse detection
-
Nurse call and WiFi (optional)
Product Information
Explore further product information via the links below.
Product Specification
DownloadSpecifications HK-100II Infusion Pump
Infusion Mode
- Infusion Modes: Rate, Drip, Time, Weight, Dose, TPN, Program, Intermittent, Micro, Sequential, Drug Library.
Infusion Performance
- Applicable Infusion Set: Standard infusion sets
- Accuracy: ±5%
- Infusion Rate: 0.10–1200 mL/h
- VTBI: 0–9999.99 mL
- Volume Infused: 0–36,000 mL
- KVO Rate: 0.1–10.0 mL/h
- Bolus & Purge Rate: 0.10–1200 mL/h
Safety
- Bubble Detection: 50–300 mL (4 levels)
- Occlusion Pressure: 13 levels
- Alarms: Low battery, occlusion, door open, near empty, malfunction, etc.
Power & Battery
- AC 100–240V, 50/60Hz; DC 12V ±1.2V
- Li Polymer 7.4V 1900mAh
- Power Consumption: 35 VA
Physical Parameters
- Size: 145 × 120 × 100 mm
- Weight: 1.4 kg
- Waterproof Rating: IP24
Environmental Conditions
- Operating Temperature: 5–40°C
- Storage Temperature: -20–+55°C
- Humidity: 10–95%
